Warm & Safe Heated Gear
Dual Remote Control Mounted Remote Control OnlySKU 11190206
- Regular price $69.90

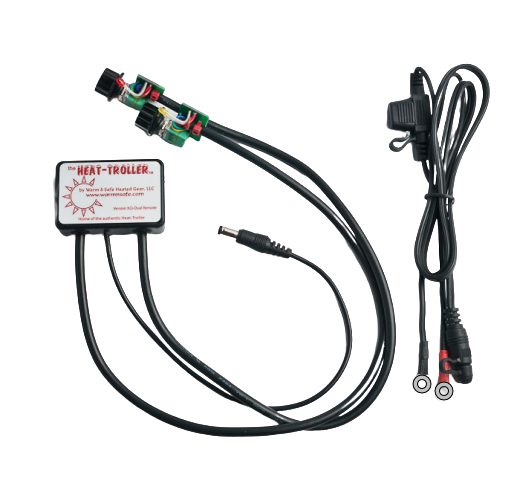

Dual Remote Control Mounted Remote Control Only
This is a replacement part, not designed to be used without the dual remote receiver. The remote control is Velcro under the fairing with the switches and LEDs panel mounted to some place covenant to be reached. The remote control is powered by a switched source like the running lights. The reason it comes with two battery harnesses is so you use one with the power from the battery to the receiver in your heated gear. The other one is to use to power the Remote control. You can cut it down to the size you need since you will be running off a switched power source like the running lights. That way you do not need a relay or a fuse for it. the Remote control only uses a few milli-amps to run the radio.
Another advantage to this setup is that if you need to remove the fairing to work on the bike, the power for the remote just unplugs and the fairing can move away from the bike. This Heat-troller is designed for 1 person to control 2 sections of heated clothing only.
Dual Remote Control Mounted Heat-troller
Electronic, solid state design coupled with analog control for a full range of heat, with minimum power loss
LED provides visual feedback for On, Off, Power Level & Polarity
Sealed Switch with tactile On/Off with 300° rotation, providing heat from 3% to full on!
Solid State, High Tech, Safe & Reliable Electronics designed by us
The Remote has the 3 blink response to tell you it is working
Handles 15 amps at 13 volts with internal reset for overloads & shorts & works from 7 volt to 16 volt.
We build for longevity and durability. We have previous versions of our Heat-trollers still fully functional and in use after 20 years. If it fails due to faulty parts or manufacturing within 3 YEARS of your purchase we WILL replace or fix it. All warranties will be voided IF the following guidelines are not followed: * Do not cut off the plugs, Ring connectors or CUT ANYTHING! * Only use the battery harness supplied with the controller, cigarette plug adaptor, or BMW power port adaptor provided to power your Heat-troller! Attempting to use a home-made BMW or cigarette plug adaptor or Fuse Blocks will void the warranty. * The Heat-troller should be installed in accordance with the enclosed instructions. We are not responsible for units damaged by incorrect installation, improper use or shorts in the clothing made by others.
